(Max Cap.: 0- 15 kg x 0.005 kg / 15 - 30 kg x 0.01 kg)
Application:
Stores, shops, supermarkets
Load cell:
Single point Alum. load cell makes system resolution up to 1/7,500
Construction:

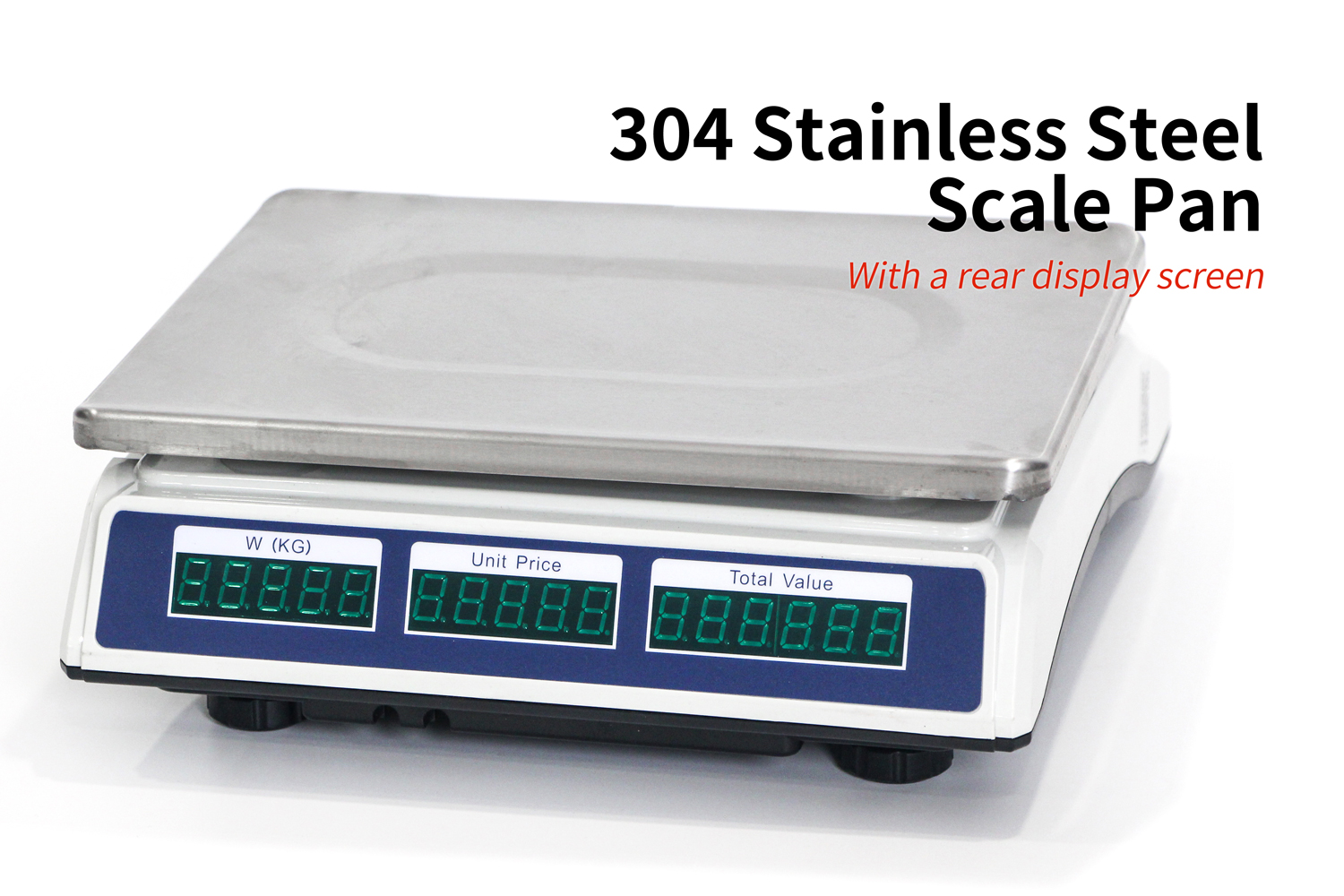

Rugged ABS plastic housing with removable stainless steel platform
Heavy-duty cast aluminum loadcell support offers safety loads
Leveling bubble and adjustable feet for quick set-up and stability
Indicator:

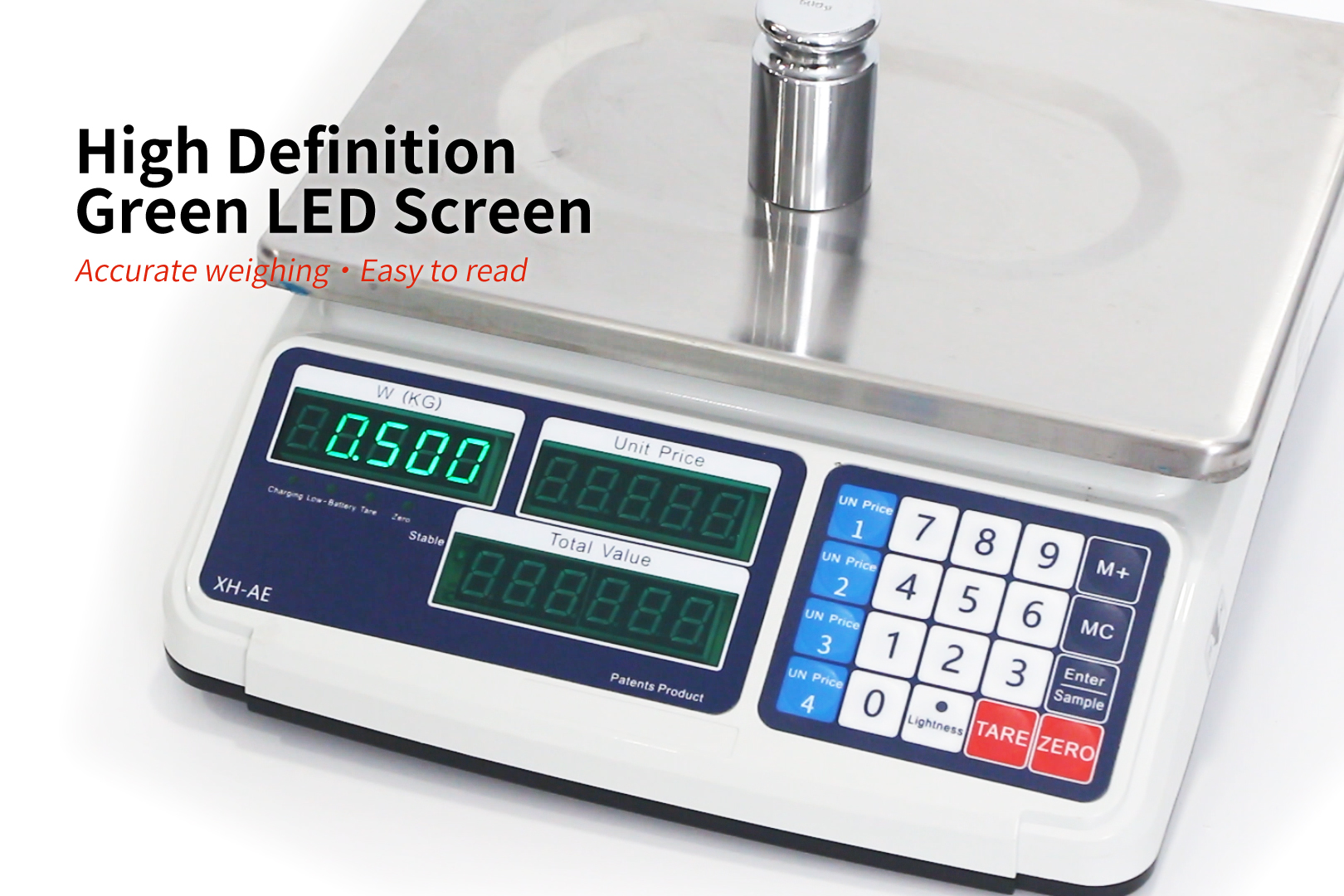

Green LED display
Keys:
M+, MC, Enter/Sample, Tare, Zero, Lightness, Unit prices1~4, RC.PLU, 0-9 digital keys
Features:

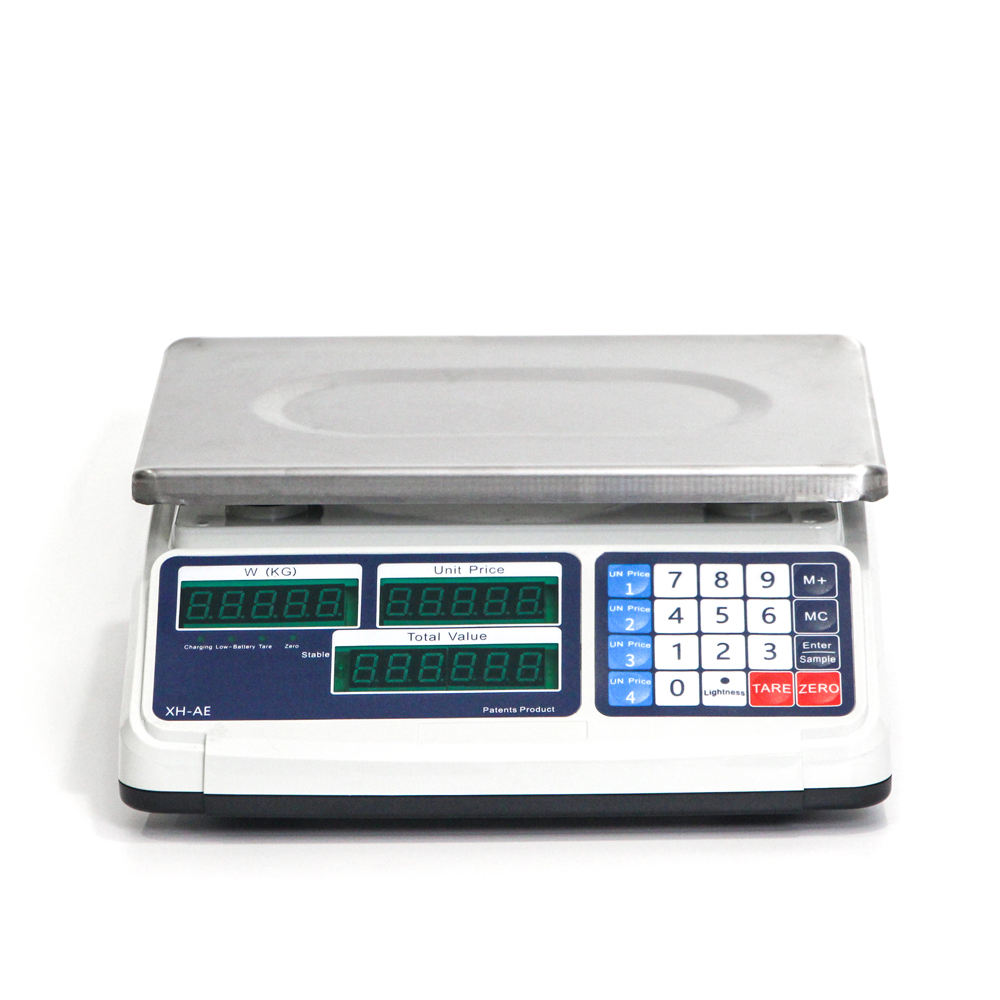

Displays Weight, Unit Price and Total Price on the front and rear displays for both operator and customer view simultaneously
Double-layer weighing platters: stainless steel and plastic platters ensure more heavy loads
Specifications:
Model | XHAE-PM-6 | XHAE-PM-15 | XHAE-PM-30 |
Capacity/Division | 0 - 3 kg x 0.001 kg / 3 - 6 kg x 0.002 kg
0 - 6lb x 0.002 lb / 6 - 15 lb x 0.005 lb | 0 - 6 kg x 0.002 kg / 6 - 15 kg x 0.005 kg
0 - 15 lb x 0.005 lb / 15 - 30 lb x 0.01 lb | 0- 15 kg x 0.005 kg / 15 - 30 kg x 0.01 kg
0 - 30 lb x 0.01 lb / 30 - 60 lb x 0.02 lb |
Units of Measure | kg, lb, oz |
Display | Three window, 6 digits, 0.56" (14.2mm) high, 7 segment LED display with backlight |
Power Supply | 12 V 500 mA AC adapter with internal positive and 6 V 4 Ah rechargeable lead-acid battery |
Operation Temperature | -10°C to 40°C (14°F to 104°F) |
Platform Size | 297 mm x 227 mm / 11.5” x 8.75” |
Packing Information | 720 mm x 400 mm x 345 mm / 4 pcs / ctn G.W.: 21 kg N.W.: 19 kg |
Options | RS232 cable |

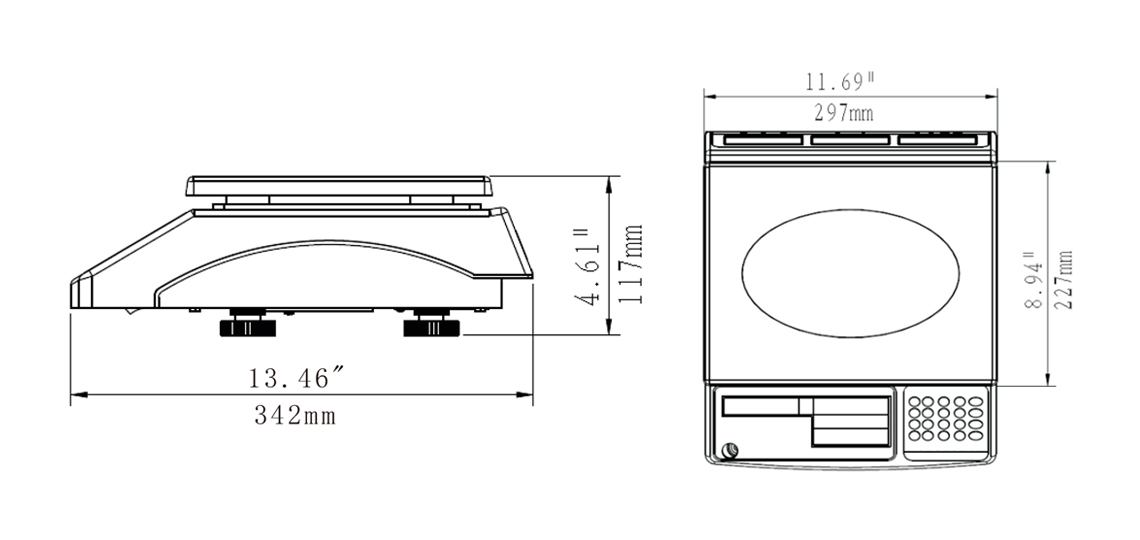

Dimension:
