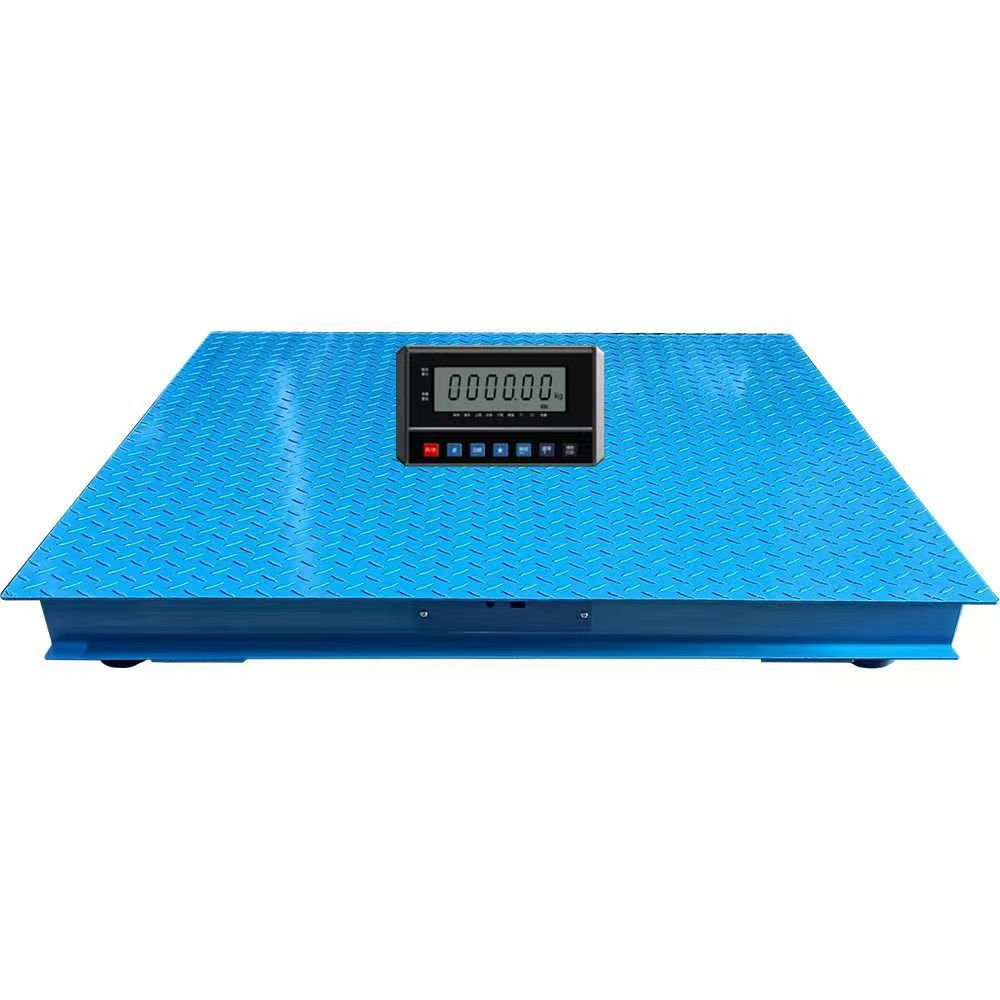

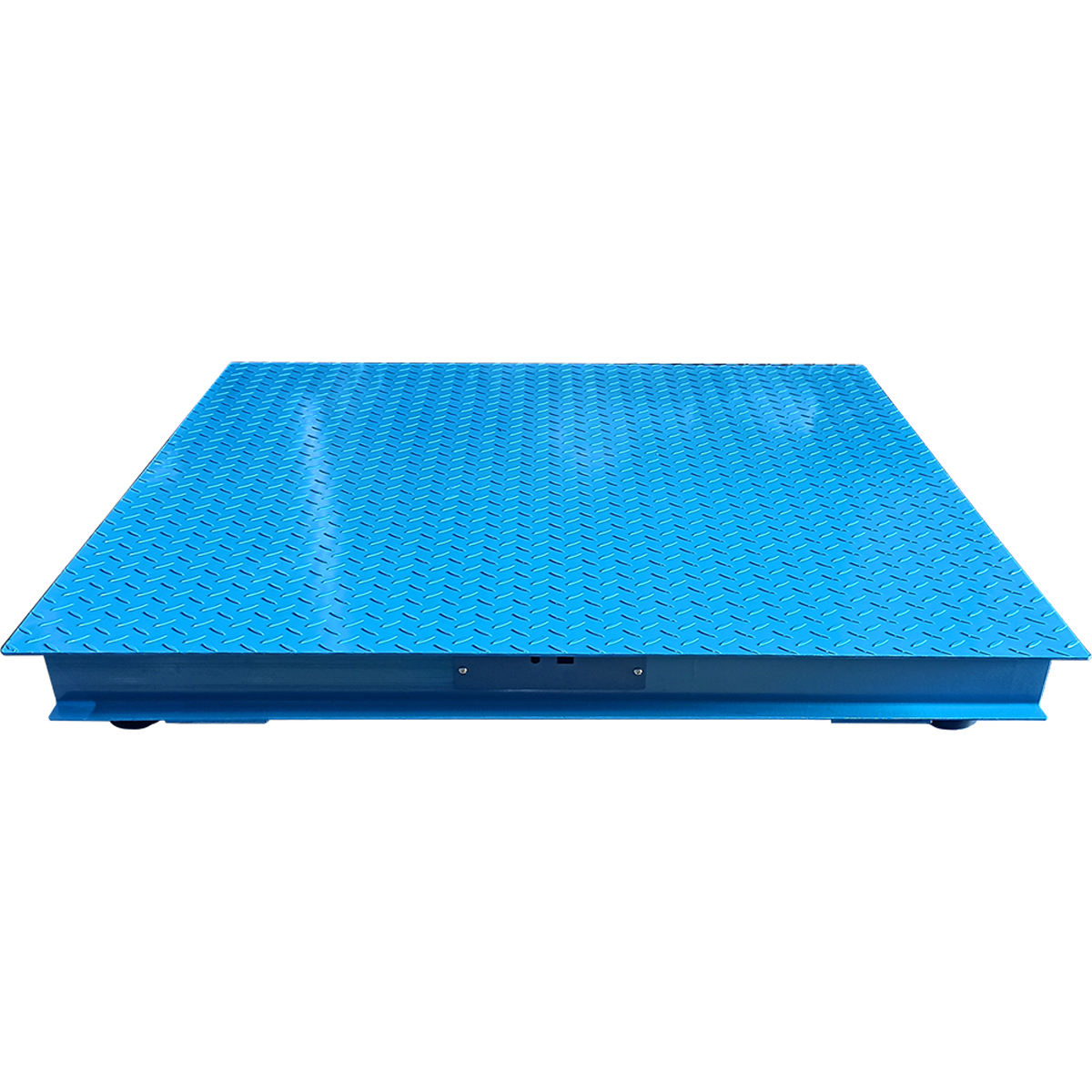

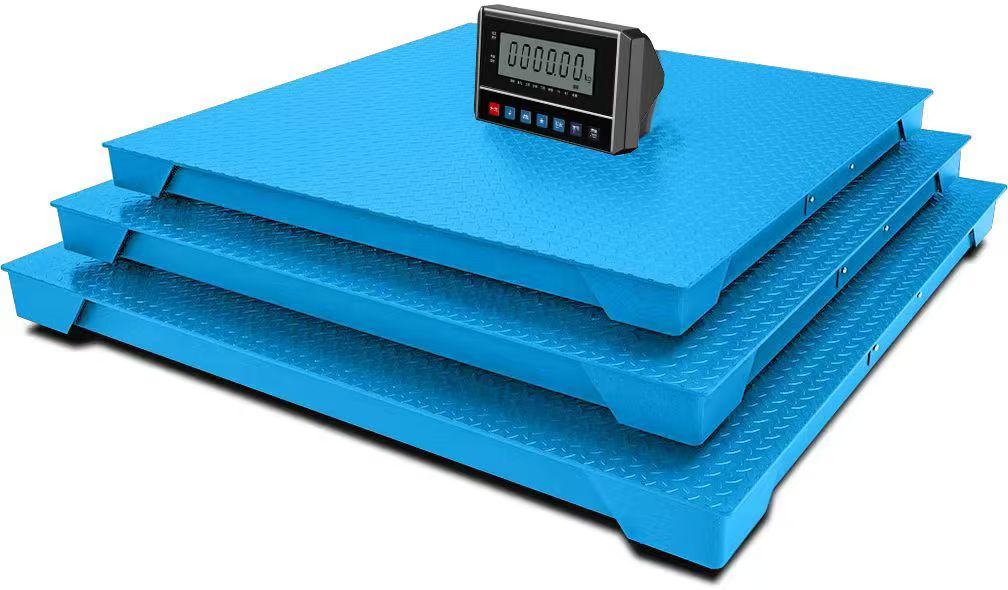

XFS floor scale
It is particularly designed to accommodate large and bulky items with ease. This spacious design enables users to weigh pallets, crates, and industrial equipment without the need for inconvenient repositioning, streamlining your workflow. It is a perfect option if you are looking for a hassle-free weighing solution.
Features
Powder-coated mild steel construction available in various capacities and dimensions for versatile applications
An ABS junction box and IP65-sealed KeLi SQB load cells
Optional powder coated steel ramps provide seamless and stable access to the platform
Equipped with A12 indicator with aluminum housing and LED display delivers all the essential functions and advanced features
Supports weighing, hold, tare, count, accumulation, percentage
Optional Bluetooth functions for diverse needs
Specifications:
Parameters: |
Model | XFS1010 | XFS1212 | XFS1515 | XFS1520 |
Max Capacity/ Division | 1000kg/200g/ 2000 lb x 0.2lb | 2000 kg / 500g / 5000 lb x 1 lb | 5000kg/500g / 10,000 lb x1lb | 5000kg/500g 10,000 lb x1lb |
Units | Kg/lb |
Display： | RED LED |
Load cell： | Alloy Steel/SQB |
Junction box material: | ABS |
Structure material: | cast iron with coating |
Power: | 12V500 mA AC adapter with internal positive, and 6 V 4 A lead-acid rechargeable battery |
Working temperature: | -10℃ to 40℃(14℉ to104℉) |
Platform size: | 1000x1000mm/ 39.37.24"*39.37" | 1200x1200mm/ 47.24"*47.24" | 1500x1500mm/ 59.05"*59.05" | 1500x2000mm/ 59.05*78.73" |
Approvals: | UL/CE/BS/VI Energy approved power adapter |
Options: | Individual ramp(1.2 x1.2 m) RS232 |
Gross weight: | 85kg | 110kg | 170kg | 250kg |
Package size/mm: | 1040*1040*180/1pcs/ctn | 1240*1240*180/1pcs/ctn | 1540*1540*180/1pcs/ctn | 1540*2040*180/1pcs/ctn |
Dimension:
