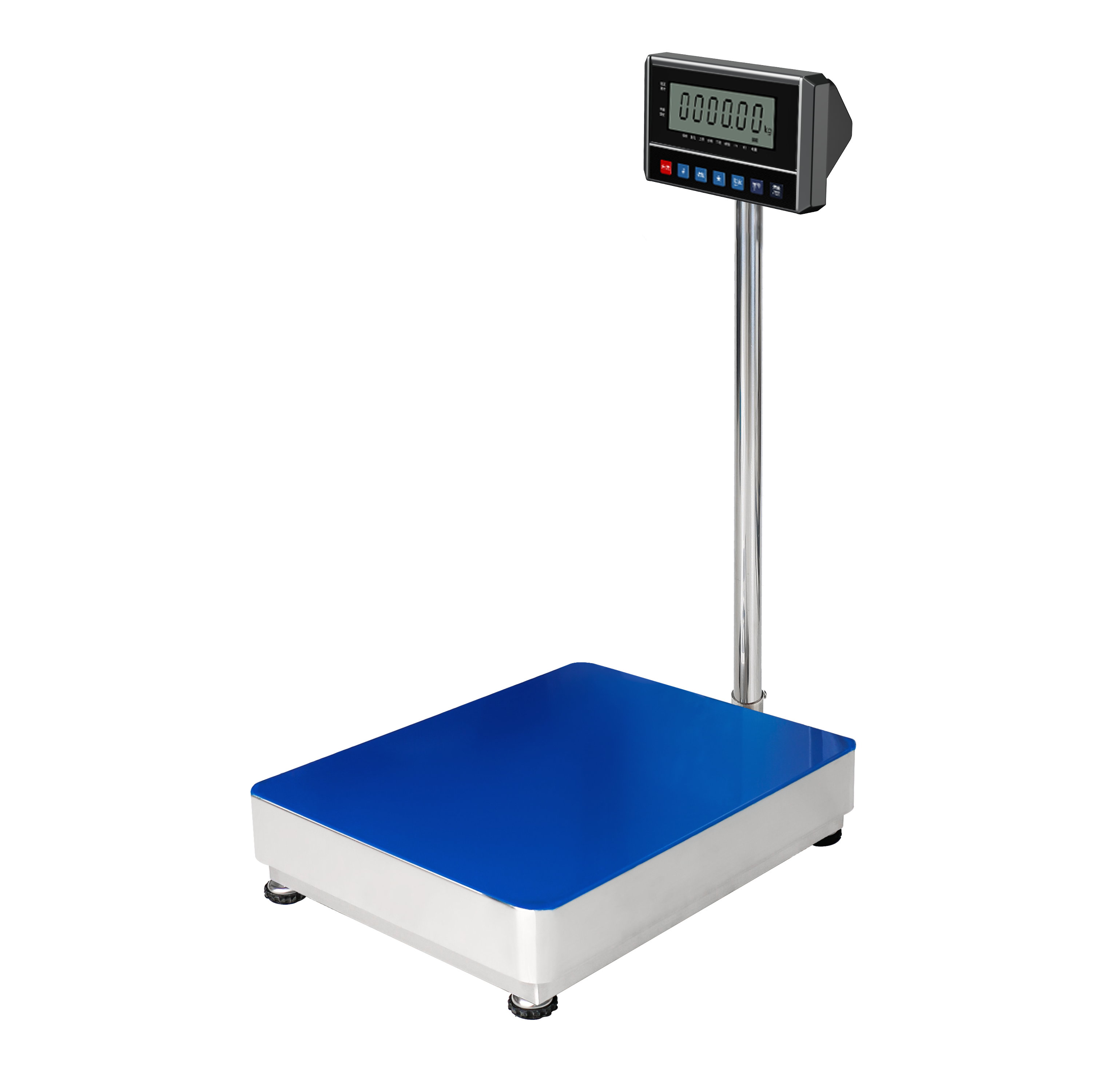

XBS platform scale
It offers unmatched durability and precision, featuring a robust stainless-steel platform and a high-precision load cell to ensure reliable measurements. Designed for safety and versatility, it is perfect for various industrial applications, from food processing to warehousing packaging.
Features:
Safety and compliance for food industrial
304 stainless steel indicator cover & waterproof rate IP68
Big size bright green LED display windows
Matt surface panel with 6 embossed key buttons
Durable, removable stainless steel top cover simplifies cleaning and maintenance

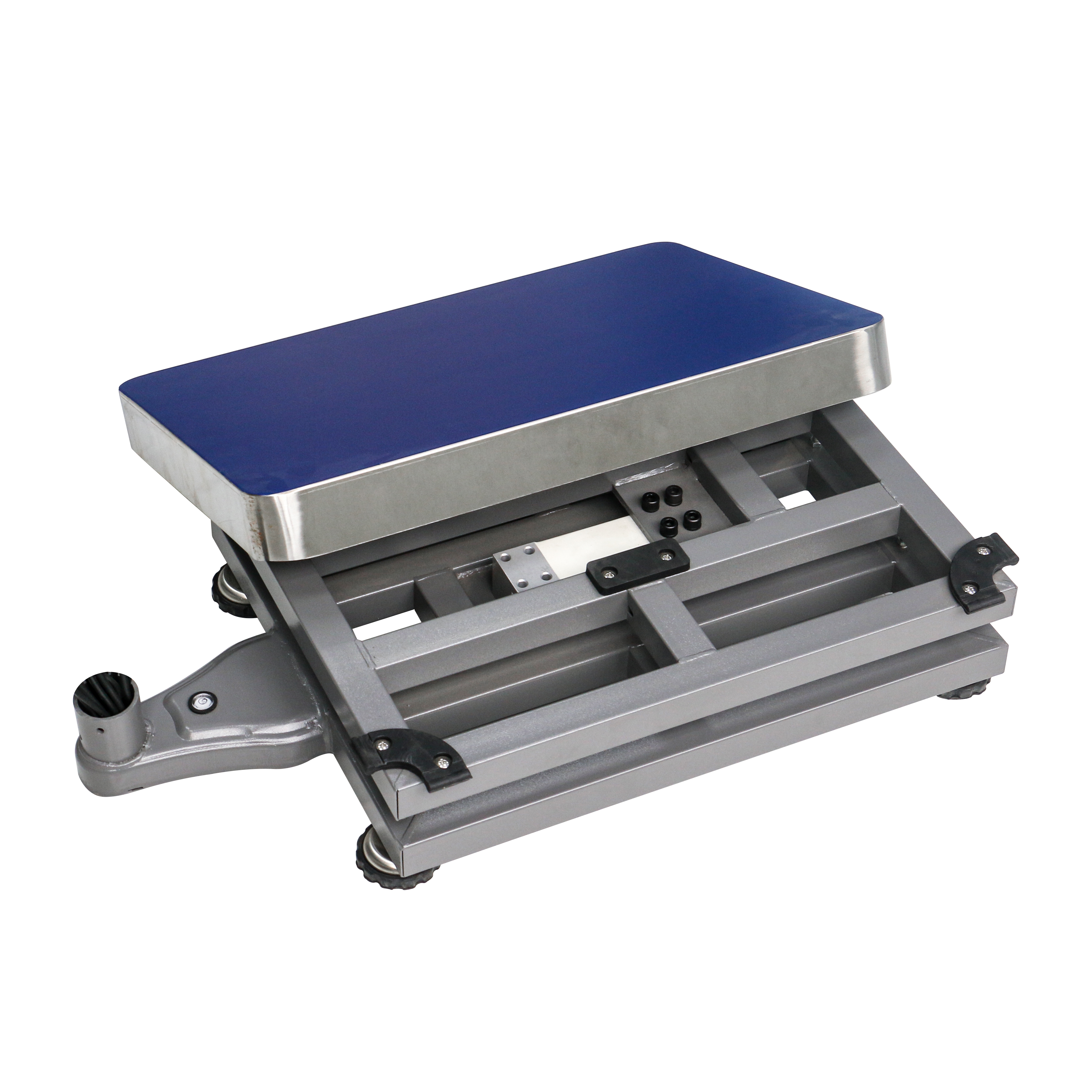

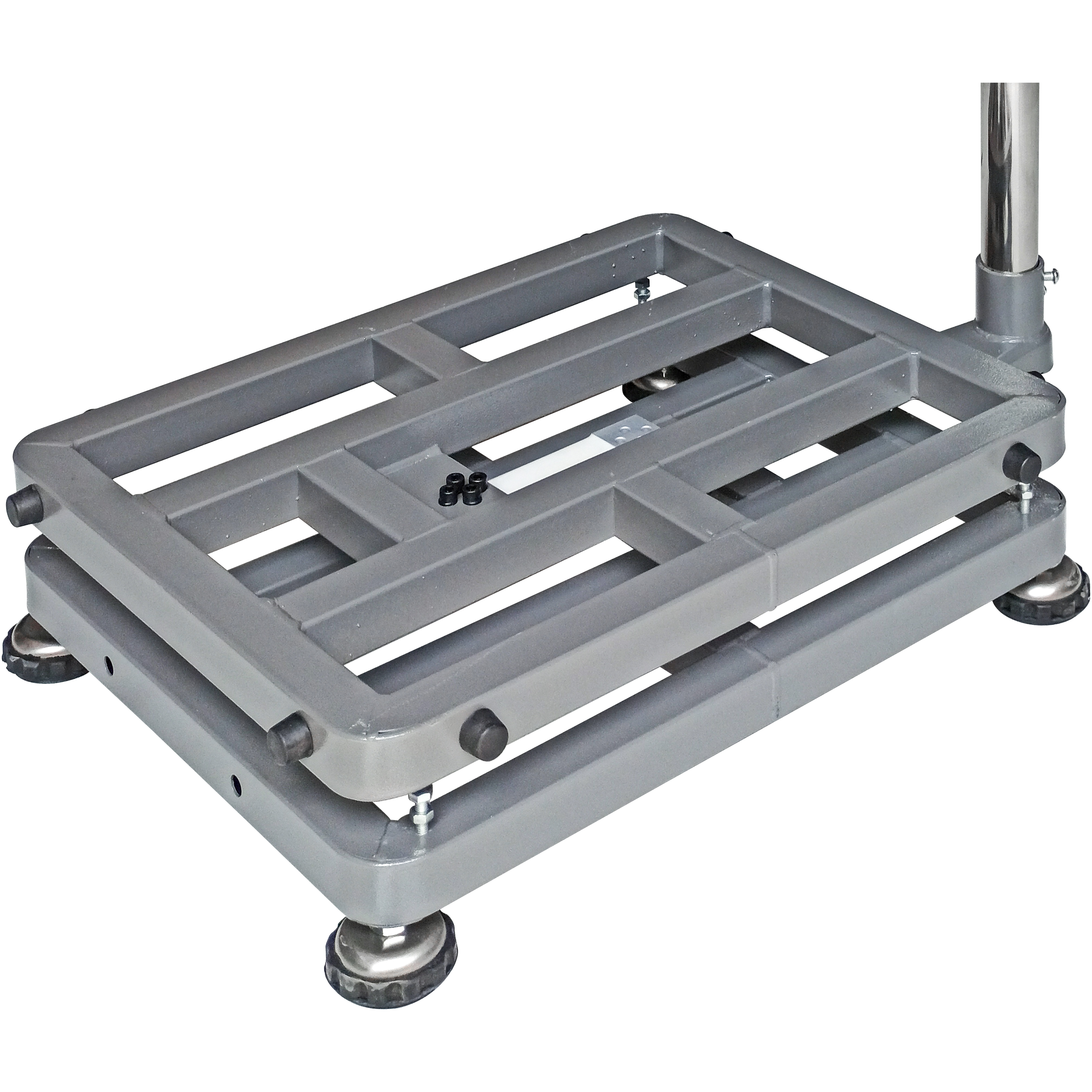

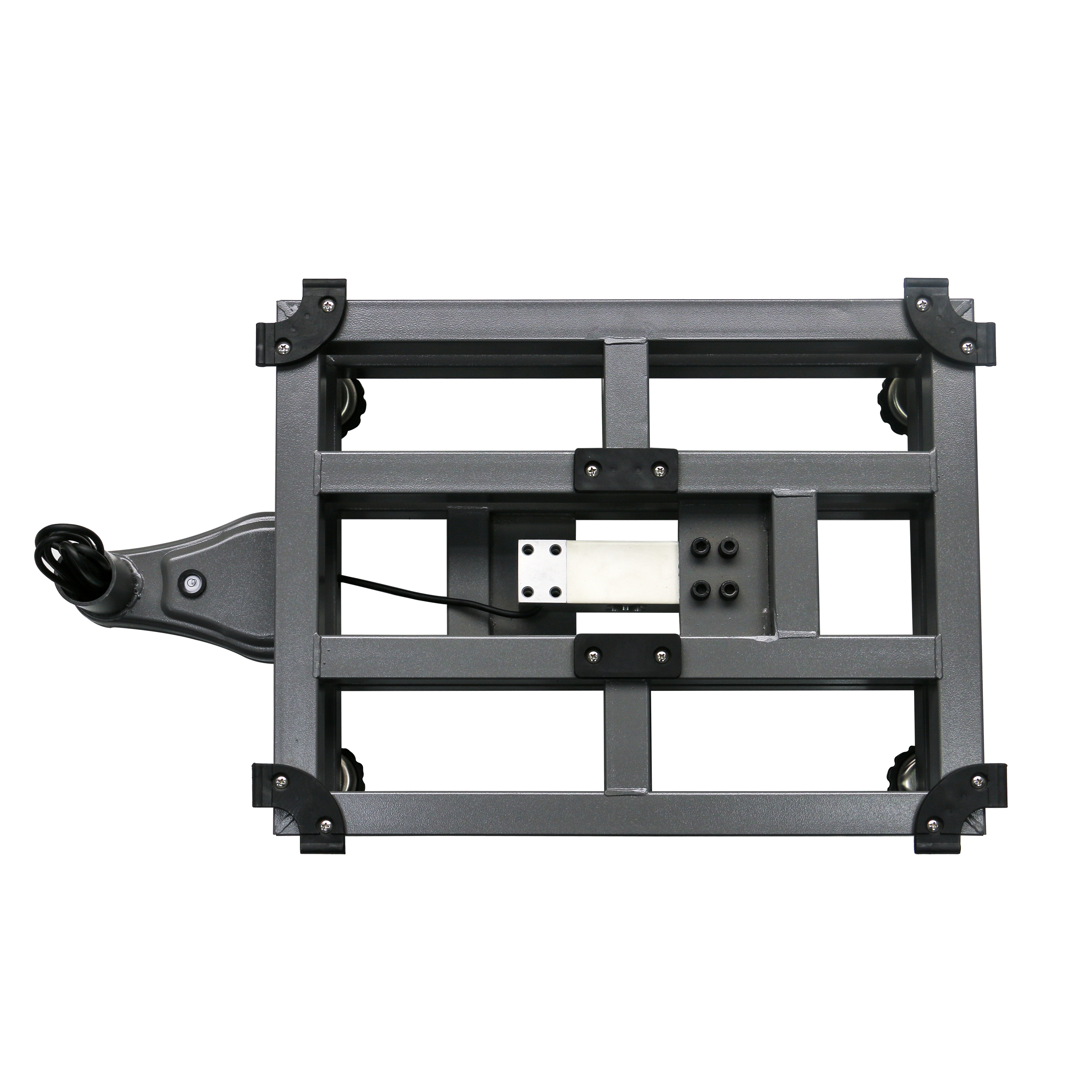

Welded mild steel frame is “田” shaped with double-layer square tubes for exceptional durability and strength and the seal welding is neat & nice
Stainless steel column provides a sturdy mount for the indicator
A leveling bubble precisely verify scales’ stability

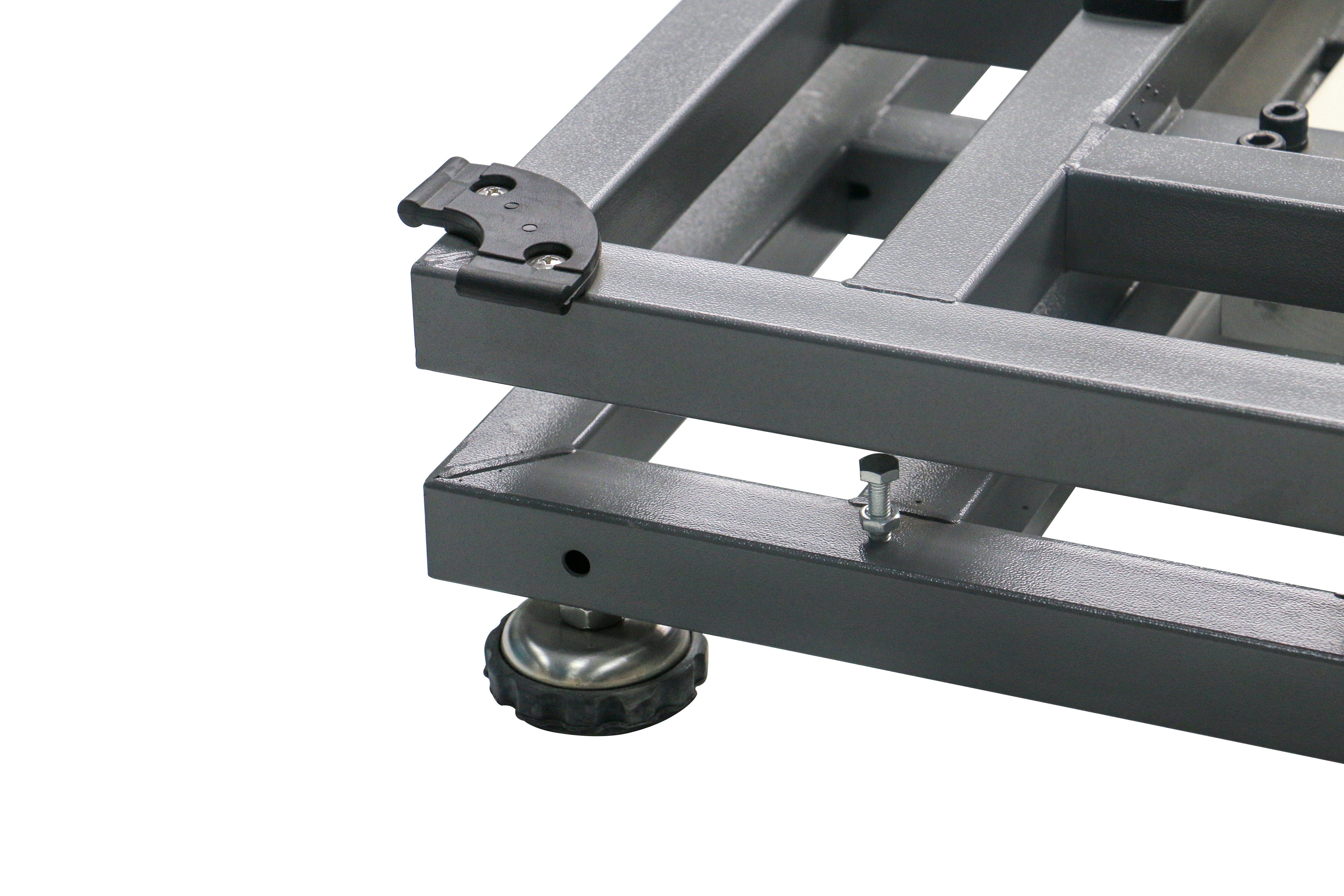

Four adjustable 304 stainless steel feet non-slip rubber allow to use on an uneven ground
Features weighing, tare, and low battery indication for practical operation
Specifications:
Parameters: |
Model | XBS3232 | XBS3040 | XBS4050 | XBS5060 |
Max Capacity/ Division | 60kg/10g/ 120 lb x 0.02lb | 150kg/20g /300 lb x0.05 lb | 300kg/50g / 660 lb x0.1lb | 500kg/100g 1000 lb x0.2lb |
Units | Kg/lb |
Display： | Green LED |
Load cell： | Aluminum alloy/L1E |
Top cover material: | 201 Stainless steel |
Structure material: | cast iron with coating |
Power: | 12V500 mA AC adapter with internal positive, and 6 V 4 A lead-acid rechargeable battery |
Working temperature: | -10℃ to 40℃(14℉ to104℉) |
Platform size: | 320x320mm/ 12.6”x12.6” | 300x400 mm/11.81”x15.75" | 400x500mm/ 15.75”x19.68" | 500x600mm/ 19.68"x23.62" |
Approvals: | UL/CE/BS/VI Energy approved power adapter |
Options: | RS232 |
|
|
|
Gross weight: | 7kg | 10kg | 15kg | 22kg |
Package size/mm: | 360*360*150 | 360*460*150 | 460*560*150 | 560*660*180 |
Dimension:
