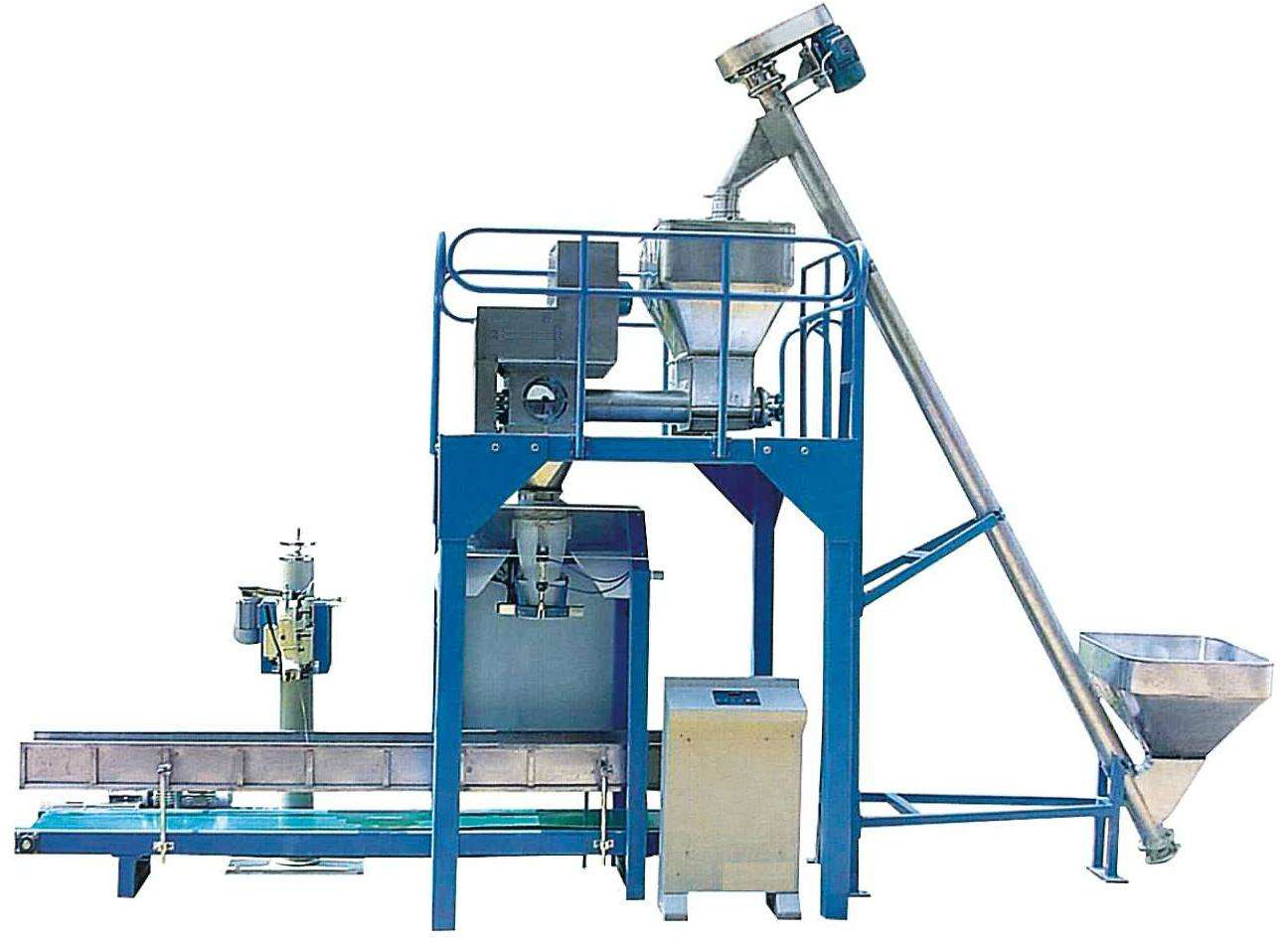

Hopper Scale Y2802-A/B
Technical Parameter
| Weighing Range | 1-5, 5-10, /10-25, /25-50 kg/bag, customized needs |
| Precision | ±0.2%FS |
| Packing Capacity | 150-200bag/hour,250-300bag/hour,480-600bag/hour |
| Power supply | 220V/380V, 50HZ, 1P/3P ( Customized) |
| Power (KW) | 3.2/4/6.6 |
| Dimension (L*W*H)mm | The size can be customized according to your site. |
| Weight | 700kg/800kg/1600kg |
| Application | Calcium carbonate powder, CaCo3 powder,ultrafine nano, 1250 mesh, limestone powder, stone powder, calcite powder |
Introduction
20 tons/hour bleaching earth powder filling and packing machine is especially designed for packing bag machine of powders,such as bleaching powder, calcium carbonate powder, fly ash, cement, caco3 powder, calcite powder, gypsum powder, talc powder,dry mortar, limestone powder, rare earth, Zinc carbonate powder,Lime Carbonate, etc. into 2.5kg, 5kg, 10kg to 50kg open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
Working Principle
First, the bag need to be applied manually to the filling spout and the filling process is started by a push-button.Your material will firstly go to the hopper and then be filled into the bags via the feeding parts. The filling flow is controlled by the frequency-change rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.
Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process
Function: 1. Clean bag filling 2. Space saving 3. Cost saving 4. Easy handling 5. High weight accuracy: ±0.2%FS 6. Nice bag sealing
