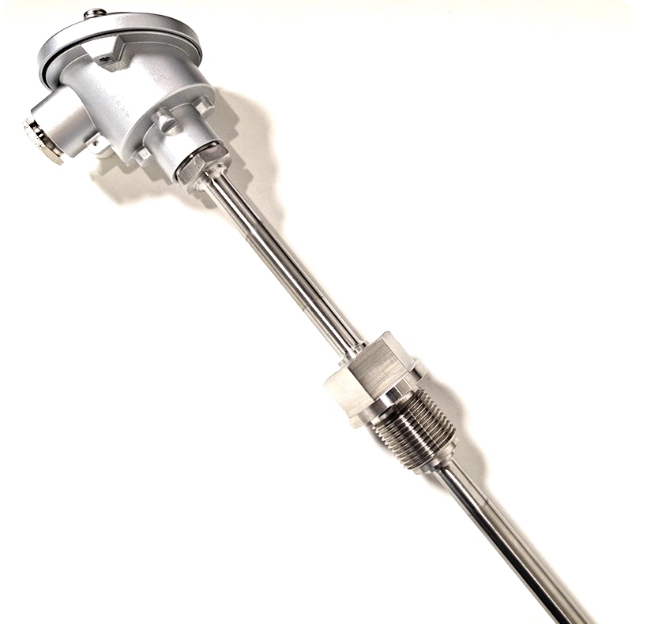

Platinum temperature sensors from JUMO are available in numerous versions as well as with different nominal values. They inspire with a high degree of accuracy, long-term stability, and a wide measuring range. The development and production of our Pt100, Pt1000, and Pt500 sensors is based on many years of experience with an annual production of several million, so that our temperature sensors meet even the most special requirements.
Standardized nominal values and tolerances according to DIN EN 60751
Flexibility through large measuring range
Excellent measuring accuracy and long-term stability
Patented manufacturing process (SMD)
Good vibration resistance
Available as Pt100, Pt500, or Pt1000
Suitable for demanding applications
Wired platinum chip temperature sensors from JUMO are available for various operating temperatures. In the medium temperature range up to 550 °C, standard variants are available with platinum wrapped wire (PCW-M-PtNi design type), which can be further processed using many common joining techniques. We offer you an economical alternative for the temperature range up to 500 °C with connecting wires made of gold-plated nickel wire (PCW-M-AuNi design type), which can also be soldered. The PCW-H-Pd design type is available for demanding applications with operating temperatures up to 600 °C.
The PCWR compact design type has connection wires that lead to the center of the sensor. As a result, it is particularly suitable for confined spaces or special probe designs. The PCWRB variant is equipped with a solderable nickel-gold metallization on the back cover. Direct thermal contact to another body can be established via metallization using a solder connection, as a result of which a fast response time can be achieved. One popular application is calorimetric flow measurement. The PCWC design type offers special protection against moisture and condensation with an epoxy coating. The sensors are ideally suited for sensor probes in the field of heating, air conditioning, and ventilation.
