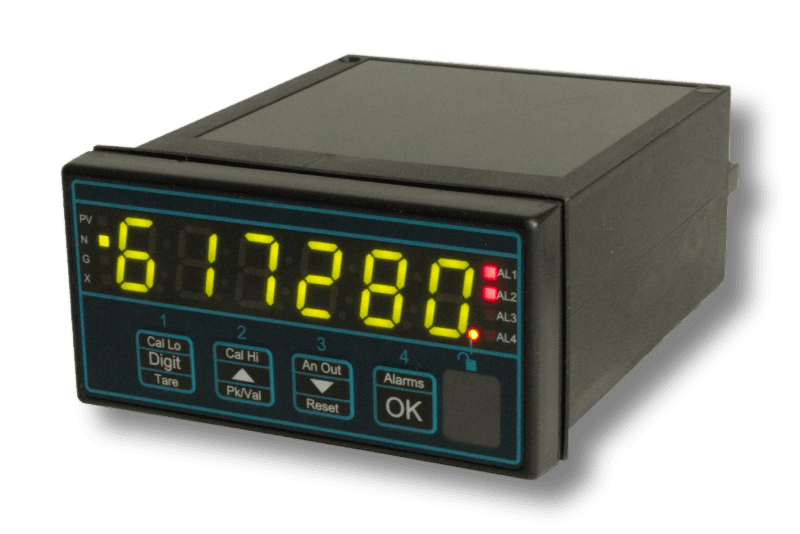

INT5-U Universal Input Panel Meter

The INT5-U has a patented analogue input circuit as well as a digital input circuit making it a truly universal input meter.

• Load Cell – Up to 4 x 350 Ohm cells or 8 x 700 Ohm cells

• Process – 0-10V, 4-20mA active source or passive sink

• DC Shunt – Up to 100mV full scale

• Potentiometer – 3 wire or 4 wire

• Resistance – Up to 20 kOhms

• RTD – PT100 or PT1000

• Thermocouple – Type B, E, J, K, N, R, S or T

• Pulse (NPN or contact closure, up to 400Hz) – Rate or Total

• Elapsed Timer – SSSS, SSS.t, MM:SS or HH:MM

• 6 digit, LED display with selectable green, red or yellow digits

• Real time diagnostics of sensor wiring

• 6 logic input ports with selectable functionality

• 95-265V AC or 11-30V DC powered

• IP65 front panel sealing

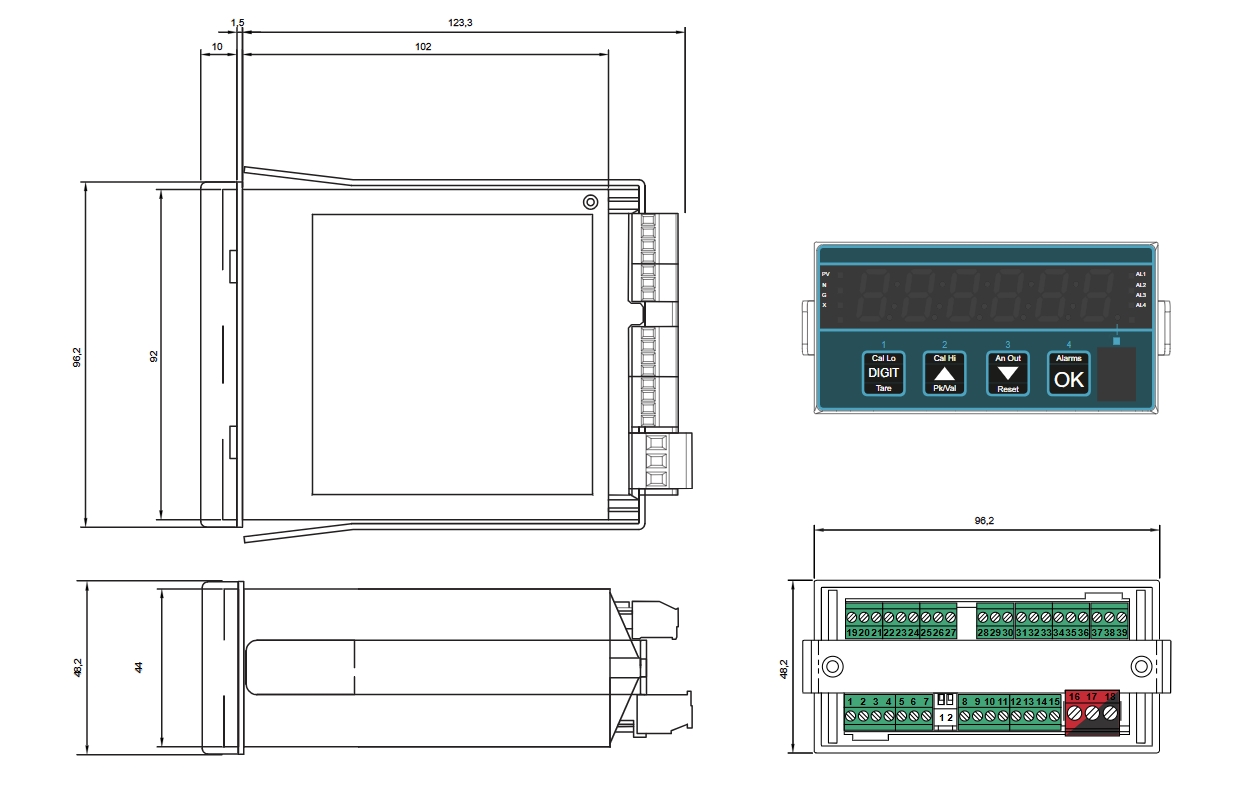

Dimensions
