High precision belt scale PDC500+ for coal weighing scale

High precision belt scale PDC500+

Belt scale main parts:

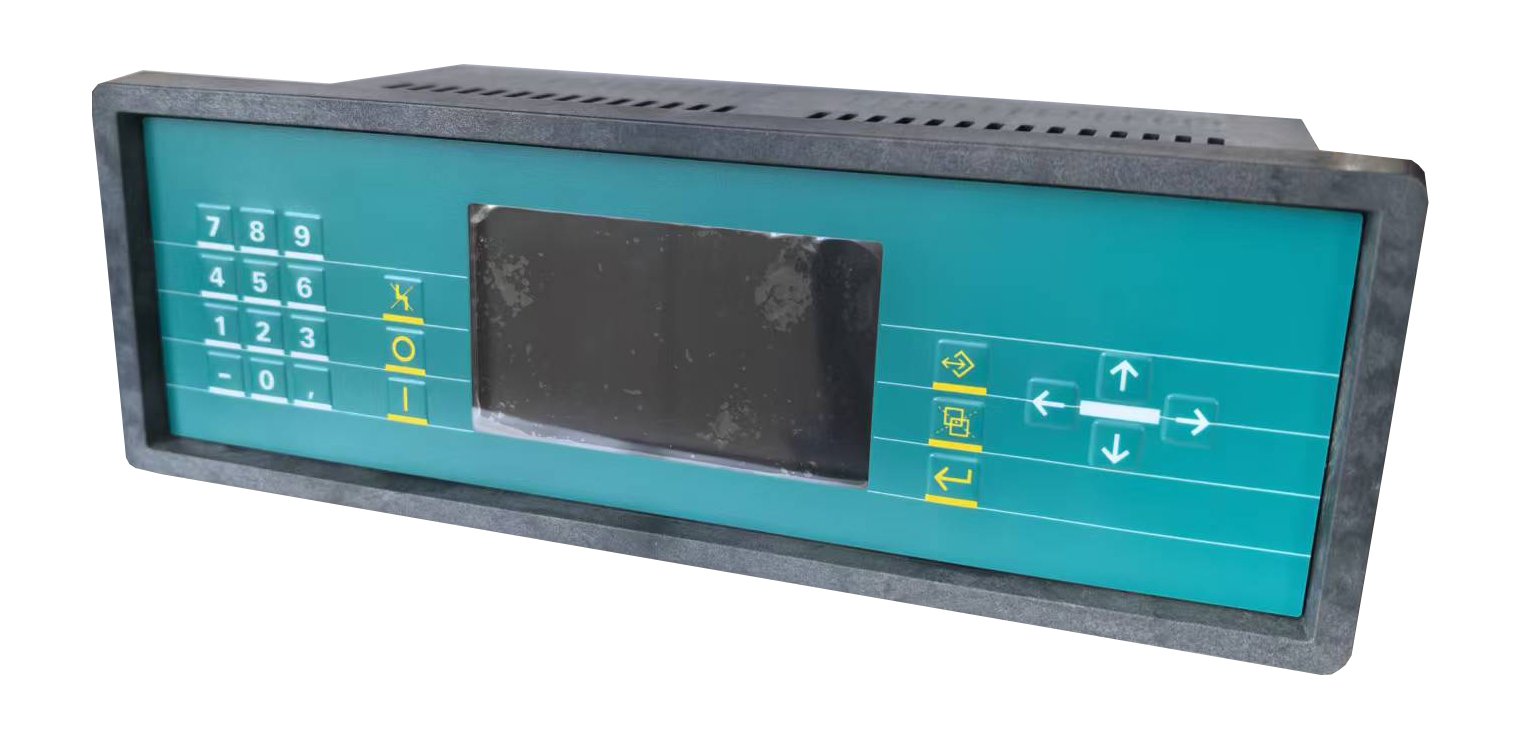

Weighing indicator	Junction box & weighing   module	Wheel type speed tester
Scale plate/ with weighing   parts

Application: all kinds of conveyor weighing

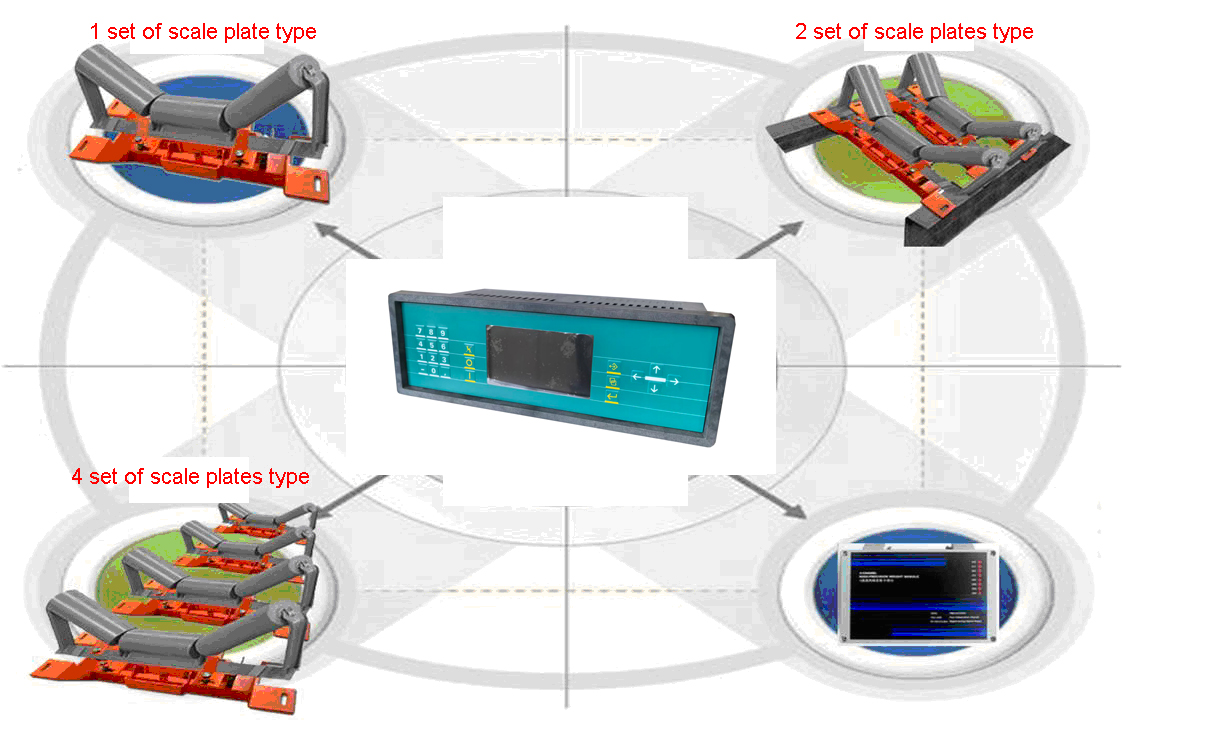

Options of Scale plate quantity: 1 set(accuracy: 1.5%    ) 2 sets(accuracy: 1%     ) 3 sets(accuracy: 0.8%  ) 4 sets(accuracy: 0.5%) 6 sets(accuracy: 0.45%) 8 sets(accuracy: 0.35%  )

Technical parameters:

Weighing display:   digital

Weighing length:   1200mm, 1400mm,2400mm, 3600mm, 4800mm

Max capacity：  36-4000T/H

Diversion：1/2/5/10/20/50

Accuracy class：III

Standard：  GB/T 7724

Weighing speed：  0-4m/s

Safe load:   150%F.S

Quality check period:    12 months /time

Using environment:

Weighing length range:   3-8m

Power  supply:   220AC 50Hz

Motor :   100VA

Belt width range :   500-2400mm

Features:

Full color weighing display

Each scale plate has two sensors to make scale be stable and high precision

Long life wheel type speed tester
