High precision belt scale BH400
Belt scale main parts: |
|
|
 |  |  |

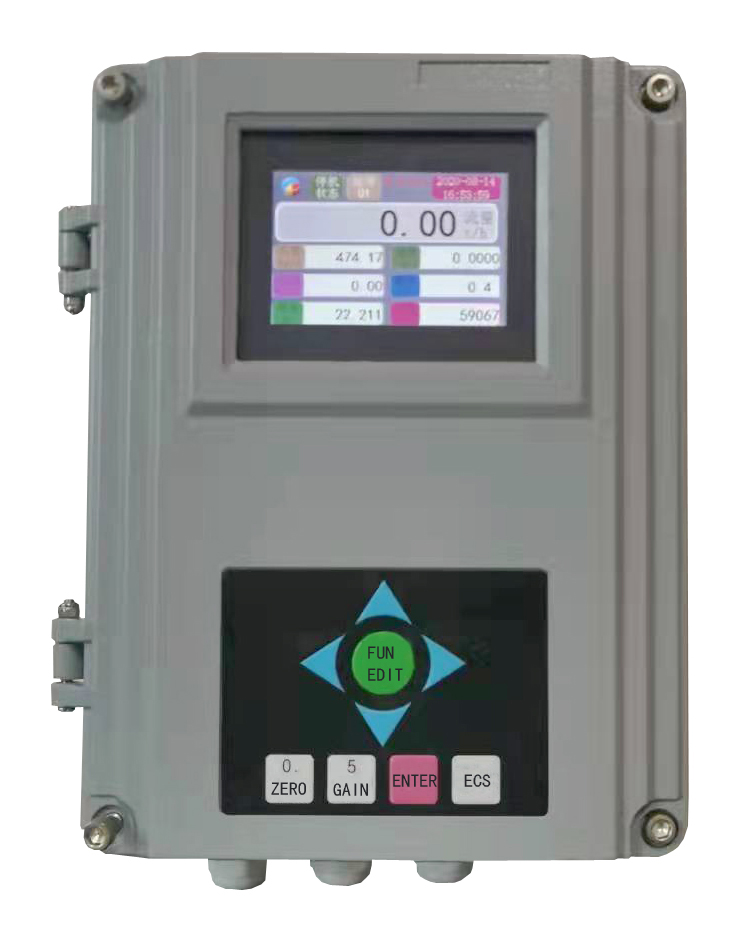

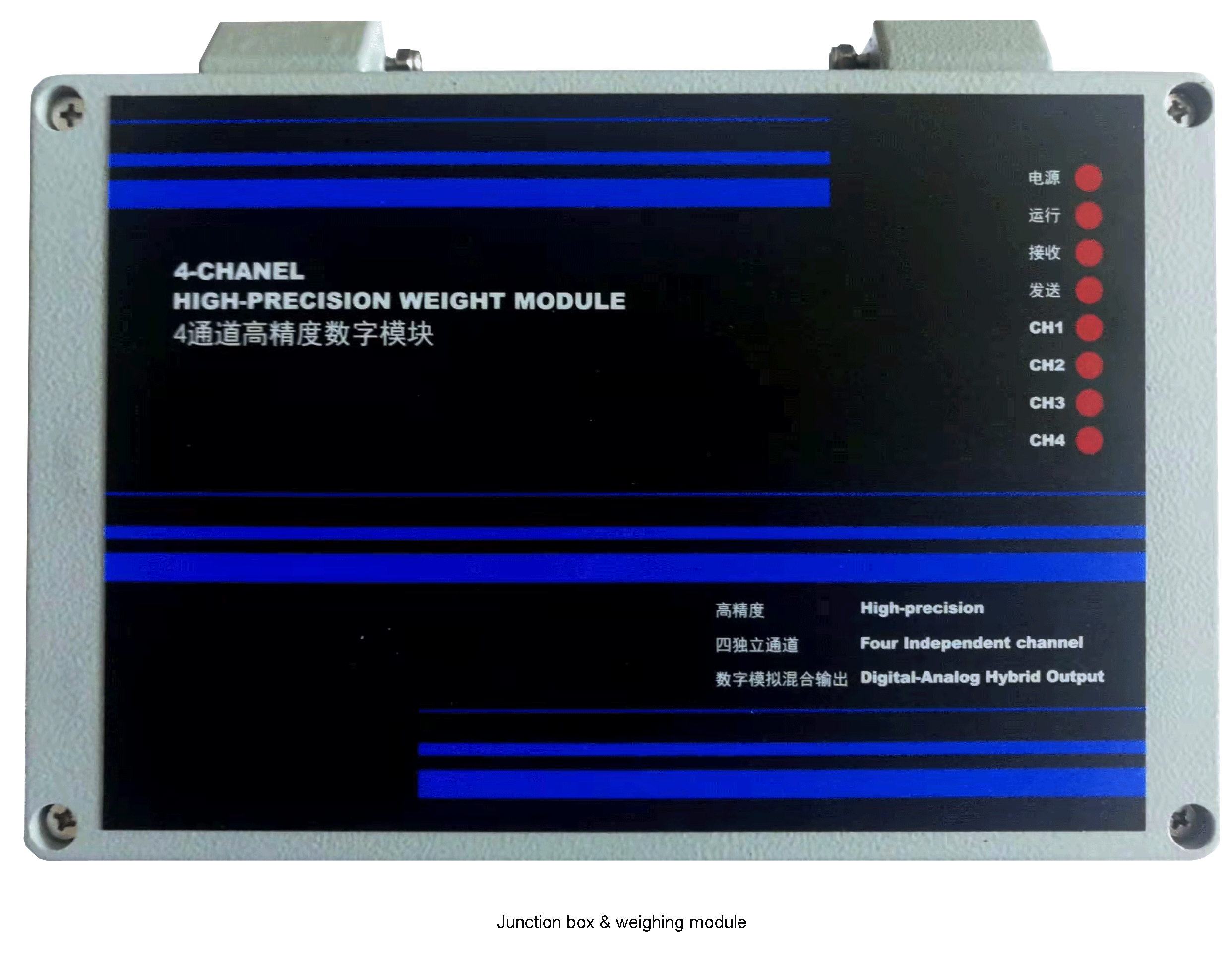

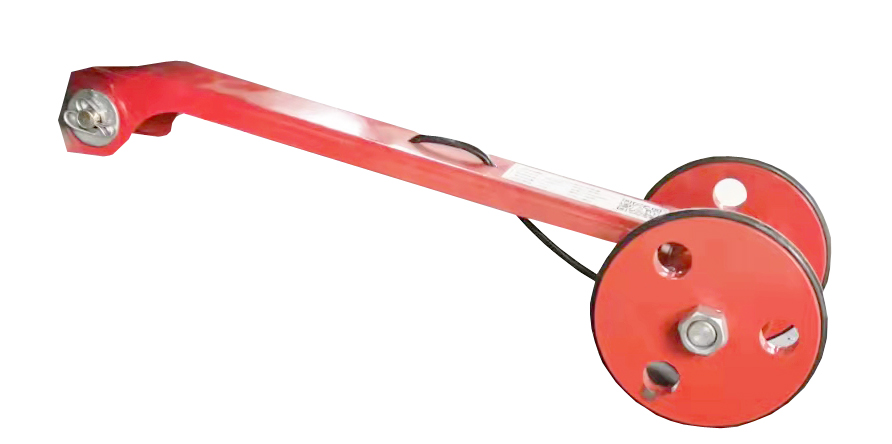

Weighing indicator | Junction box & weighing module | Wheel type speed tester |
 |

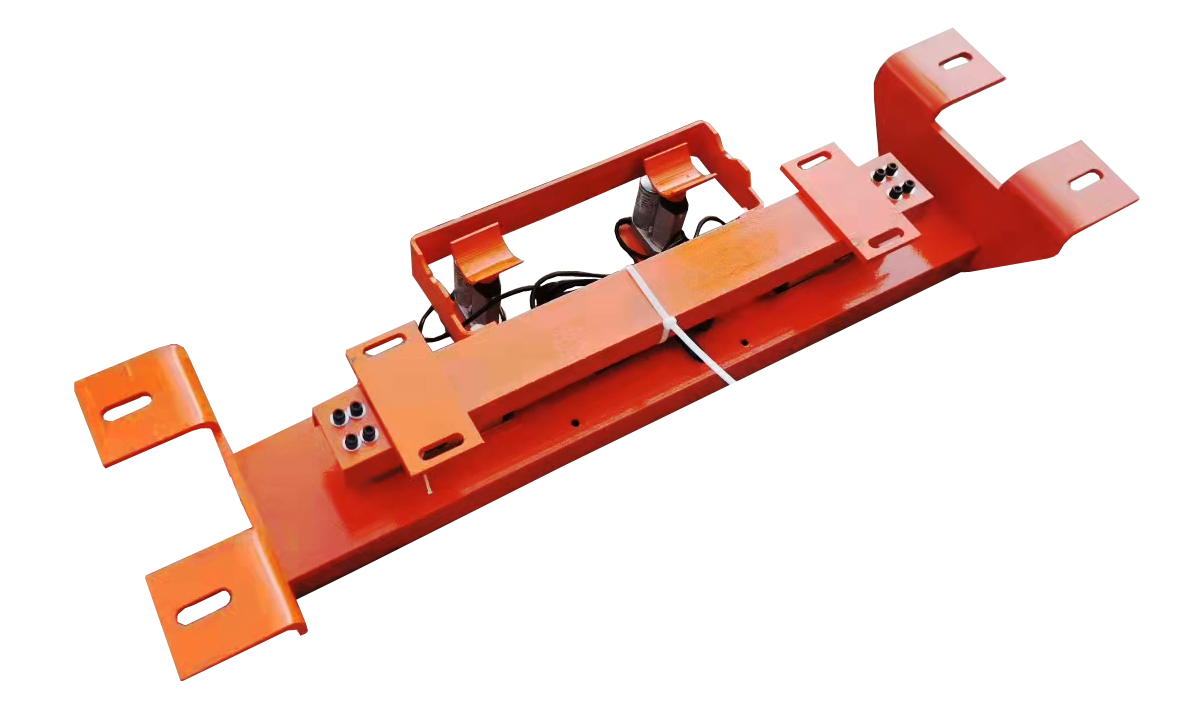

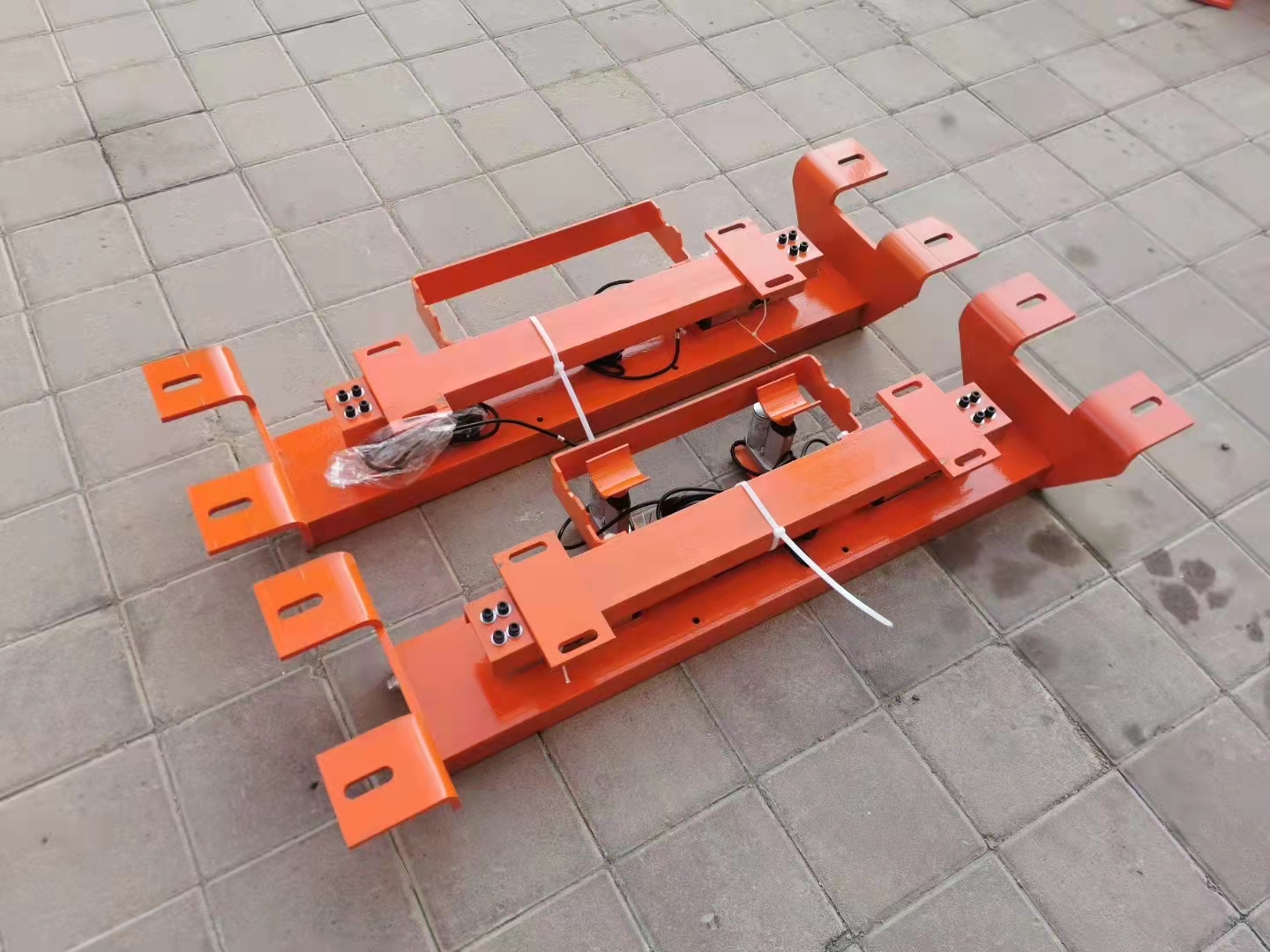

Scale plate/ with weighing parts |
Application: all kinds of conveyor weighing

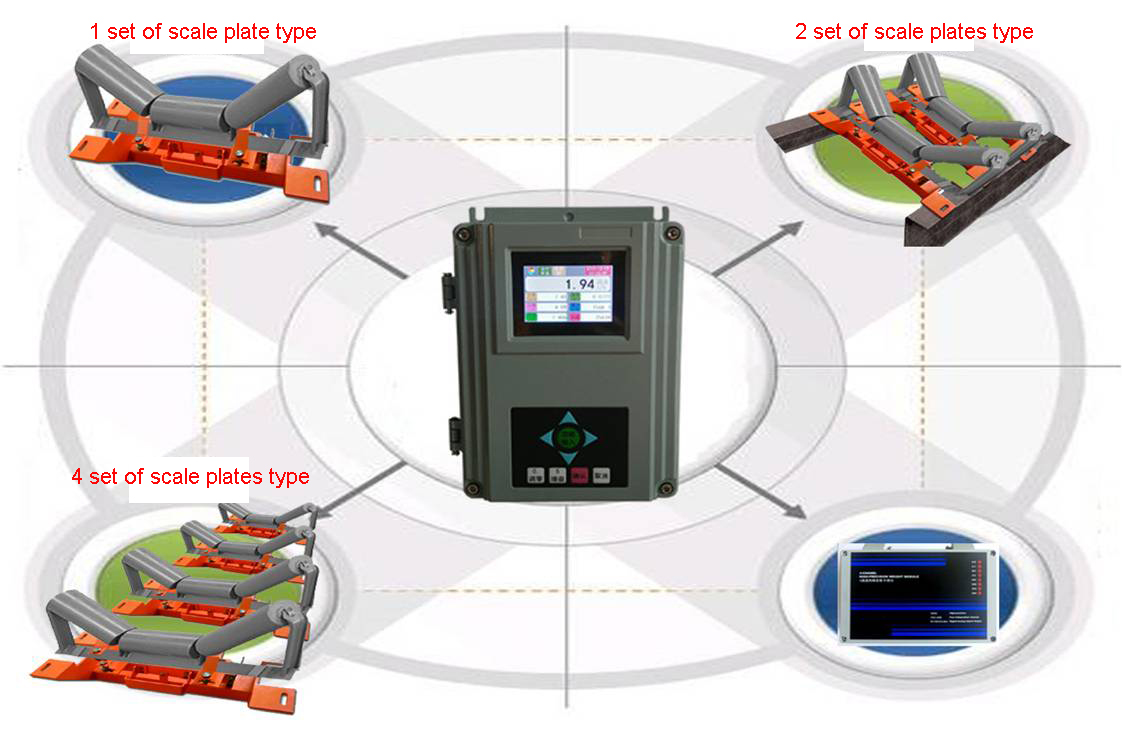

Options of Scale plate quantity: 1 set(accuracy: 1.5% ) 2 sets(accuracy: 1% ) 3 sets(accuracy: 0.8% ) 4 sets(accuracy: 0.75%) 6 sets(accuracy: 0.55%) 8 sets(accuracy: 0.5% ) |  |
Technical parameters:
Weighing display: digital
Weighing length: 1200mm, 2400mm, 3600mm, 4800mm
Max capacity： 36-4000T/H
Diversion：1/2/5/10/20/50
Accuracy class：III
Standard： GB/T 7724
Weighing speed： 0-4m/s
Safe load: 150%F.S
Quality check period: 12 months /time
Using environment:
Weighing length range: 3-8m
Power supply: 220AC 50Hz
Motor : 100VA
Belt width range : 500-2400mm
Features:
Full color weighing display
Each scale plate has two sensors to make scale be stable and high precision
Long life wheel type speed tester
